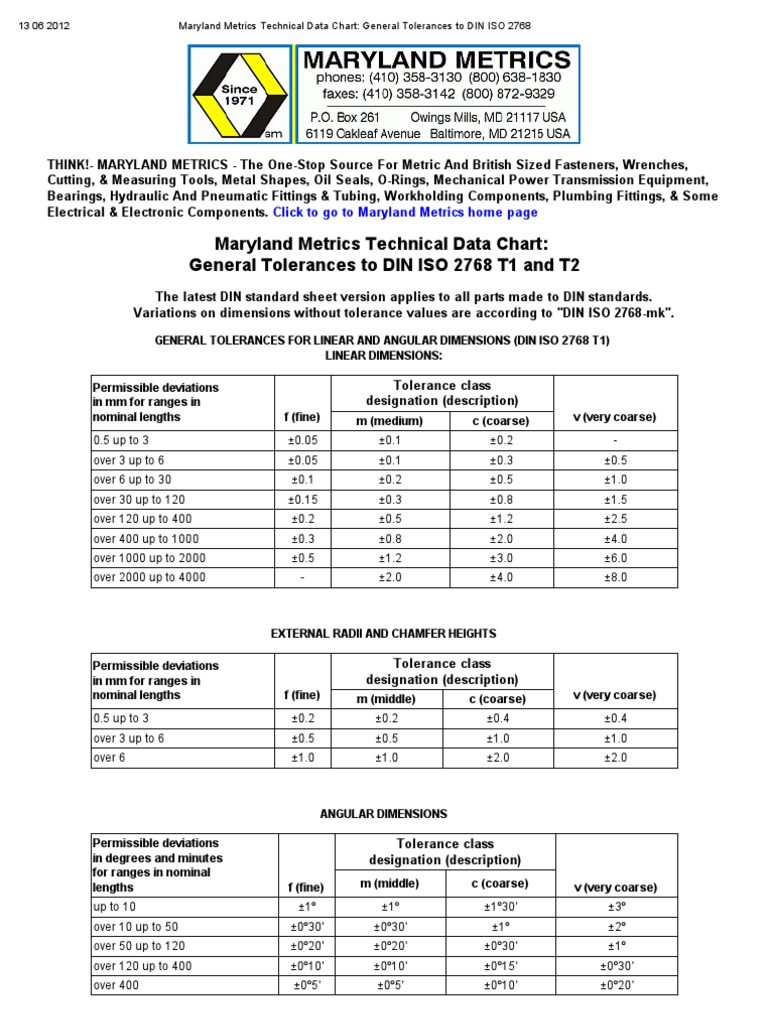

General Tolerances ISO 2768-1 ISO 2768-1 is intended to simplify drawing indications and specifies general tolerances in 4 tolerance classes (f – fine, m – medium, c – coarse, v – very coarse). It applies for the linear dimensions and angular dimensions such as external sizes, internal sizes, step sizes. General Tolerances ISO 2768-1 ISO 2768-1 is intended to simplify drawing indications and specifies general tolerances in 4 tolerance classes (f – fine, m – medium, c – coarse, v – very coarse). It applies for the linear dimensions and angular dimensions such as external sizes, internal sizes, step sizes. Doug, there are 2 parts to ISO 2768.1 refers to tolerances for linear and angular dimensuons without tolerance indications and -2 refers to geometric tolerances for features with individual tolerance indiscations. So, in -2 you'll see that K is a tolerance class. General Tolerances to DIN ISO 2768. The latest DIN standard sheet version applies to all parts made to DIN standards. Variations on dimensions without tolerance values are according to 'DIN ISO 2768- mk'. Permissible deviations in mm for ranges in nominal lengths 0.5 up to 3 over 3 up to 6 over 6 up to 30 over 30 up to 120 over 120 up to 400. ISO 2768-2:1989 General tolerances — Part 2: Geometrical tolerances for features without individual tolerance indications. This standard has been revised by ISO. This part is intended to simplify drawing indications and specifies general tolerances in three tolerance classes. It mainly applies to features which are.
Iso 2768 Mk Pdf
Iso 2768 Mk-e Meaning
Iso 2768-mk Vs Iso 2768-mh
General ISO Geometrical Tolerances Per. ISO 2768 | The following are general geometrical tolerances per. ISO 2768 for the following: - Linear Dimensions
- External Radius and Chamfer Heights
- Straightness and Flatness
- Perpendicularity
- Symmetry
- Runout
Related Mechanical Tolerance Design Data Variations on dimensions without tolerance values are according to ' ISO 2768'. All tolerance limits are given in mm. ISO 2768 and derivative geometrical tolerance standards are intendedto simplify drawing specifications for mechanical tolerances. ISO 2768 is mainly for parts that are manufactured by way of machining or removal of materials. Linear Dimensions: | Permissible deviations in mm for ranges in nominal lengths | f (fine) | Tolerance class designation (description) | v (very coarse) | | m (medium) | c (coarse) | | 0.5 up to 3 | ±0.05 | ±0.1 | ±0.2 | - |
|---|
| over 3 up to 6 | ±0.05 | ±0.1 | ±0.3 | ±0.5 | | over 6 up to 30 | ±0.1 | ±0.2 | ±0.5 | ±1.0 | | over 30 up to 120 | ±0.15 | ±0.3 | ±0.8 | ±1.5 | | over 120 up to 400 | ±0.2 | ±0.5 | ±1.2 | ±2.5 | | over 400 up to 1000 | ±0.3 | ±0.8 | ±2.0 | ±4.0 | | over 1000 up to 2000 | ±0.5 | ±1.2 | ±3.0 | ±6.0 | | over 2000 up to 4000 | - | ±2.0 | ±4.0 | ±8.0 |
|---|
External Radius and Chamfer Heights | Permissible deviations in mm for ranges in nominal lengths | f (fine) | Tolerance class designation (description) | v (very coarse) | | m (middle) | c (coarse) | | 0.5 up to 3 | ±0.2 | ±0.2 | ±0.4 | ±0.4 | | over 3 up to 6 | ±0.5 | ±0.5 | ±1.0 | ±1.0 | | over 6 | ±1.0 | ±1.0 | ±2.0 | ±2.0 |
Angular Dimensions | Permissible deviations in degrees and minutes for ranges in nominal lengths | f (fine) | Tolerance class designation (description) | v (very coarse) | | m (middle) | c (coarse) | | up to 10 | ±1º | ±1º | ±1º30' | ±3º | | over 10 up to 50 | ±0º30' | ±0º30' | ±1º | ±2º | | over 50 up to 120 | ±0º20' | ±0º20' | ±0º30' | ±1º | | over 120 up to 400 | ±0º10' | ±0º10' | ±0º15' | ±0º30' | | over 400 | ±0º5' | ±0º5' | ±0º10' | ±0º20' |
Straightness and Flatness | Ranges in nominal lengths in mm | Tolerance class | | H | K | L | | up to 10 | 0.02 | 0.05 | 0.1 | | over 10 up to 30 | 0.05 | 0.1 | 0.2 | | over 30 up to 100 | 0.1 | 0.2 | 0.4 | | over 100 up to 300 | 0.2 | 0.4 | 0.8 | | over 300 up to 1000 | 0.3 | 0.6 | 1.2 | | over 1000 up to 3000 | 0.4 | 0.8 | 1.6 |
Perpendicularity | Ranges in nominal lengths in mm | Tolerance class | | H | K | L | | up to 100 | 0.2 | 0.4 | 0.6 | | over 100 up to 300 | 0.3 | 0.6 | 1 | | over 300 up to 1000 | 0.4 | 0.8 | 1.5 | | over 1000 up to 3000 | 0.5 | 0.8 | 2 |
Symmetry (Position for ISO G&T Standard not-ASME or ANSI GD&T) | Ranges in nominal lengths in mm | Tolerance class | | H | K | L | | up to 100 | 0.5 | 0.6 | 0.6 | | over 100 up to 300 | 0.5 | 0.6 | 1 | | over 300 up to 1000 | 0.5 | 0.8 | 1.5 | | over 1000 up to 3000 | 0.5 | 1 | 2 |
Run-Out | Tolerance class | | H | K | L | | 0.1 | 0.2 | 0.5 |
Related Resources: - Online GD&T Fundamentals
